2D/3D CNC Stone Engraving Machine
3-axis CNC for 2D and 3D stone carving — 1300×2500 mm bed, 200 mm Z, 18,000 RPM single spindle, rack & pinion X-Y, ball-screw Z, 0.025 mm resolution, PCI-based or DSP control.
Minimum order 1 piece. Final price depends on controller options. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Computer-controlled 2D/3D stone carving
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
In most setups, CNC machines cut in three directions: X (front to back), Y (left to right) and Z (up and down). Because they run on computers, CNC routers are faster and more exact than manual work, making them valuable in manufacturing.

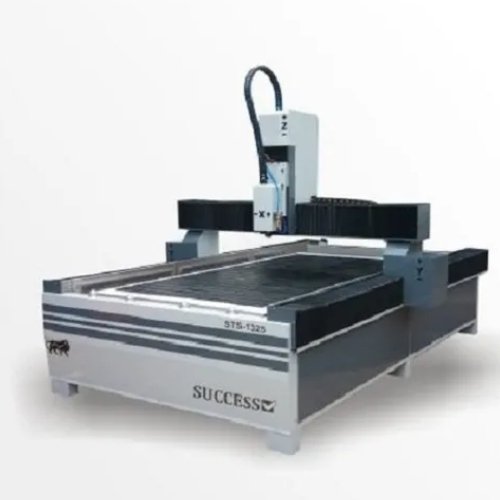

The STS-1325 is a Success Technologies 3-axis machine for 2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — with marble, stone and granite as primary job materials.
| Model | STS-1325 |
|---|---|
| Brand | Success |
| Machine type | 3 Axis |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 200 mm |
| Spindle head type | Single spindle |
| Spindle speed | 18,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Resolution | 0.025 mm |
| Command code | G-code |
| Driven motor | Stepper motor |
| Control system | PCI based or DSP |
| Job material | Marble, stone, granite |
| Minimum order quantity | 1 Piece |
| Country of origin | Made in India |
2D & 3D carving
Built for flat engraving and dimensional relief work on stone and related materials.
1300×2500 mm bed
Full 4×8 ft X-Y working area for standard slab nesting without repositioning.
200 mm Z · ball screw
Ball-screw Z with 200 mm travel for controlled depth on 2D/3D relief jobs.
18,000 RPM spindle
Single spindle speed suited to precise stone engraving and carving paths.
PCI based or DSP
Control system options with G-code and stepper drive for common CAD-CAM workflows.
0.025 mm resolution
Fine resolution with rack & pinion X-Y for accurate, repeatable stone work.
Applications of the STS-1325
2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — for memorials, tiles, reliefs and decorative stone products.
