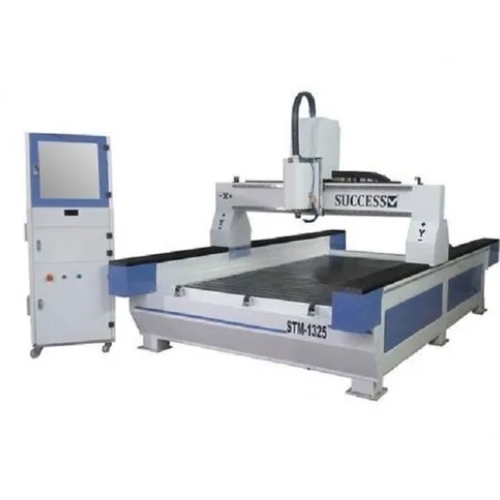

CNC Stone Engraving & Router Machine
STM-1325 CNC stone cutting, engraving and routing — 1300×2500 mm bed, 400 mm Z, 4.5 kW single spindle to 18,000 RPM, rack & pinion X-Y, ball-screw Z. Built for granite, marble, sandstone and artificial stone.
Minimum order 1 piece · new condition. Final price depends on options. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Stone cutting, engraving & routing in one CNC
Engraving is a cutting technique that carves a design into a hard surface to adorn or label objects. Traditionally done with manual tools, CNC engraving now uses computer-controlled milling paths created by CAD-CAM software from the design drawing.
Marked by sophisticated technology and modern equipment, we offer a qualitative range of STM-1325 CNC Stone Cutting & Engraving Machines. Compared with manual engraving, CNC machines perform a wide range of advanced precision work for practical and artistic goals.
Features: single spindle, rugged construction, rust resistance and long functional life. Application: 2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam.
| Model | STM-1325 |
|---|---|
| Brand | Success |
| Machine type | 3 Axis |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 400 mm |
| Spindle power | 4.5 kW |
| Spindle head type | Single spindle |
| Spindle speed | 18,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Command code | G-code |
| Driven motor | Stepper motor |
| Job material | Artificial stone, granite, sandstone, marble, stone, black graphite |
| Condition | New |
| Minimum order quantity | 1 Piece |
| Country of origin | Made in India |
Single spindle
Dedicated single-head setup for stone cutting, engraving and routing paths.
Rugged construction
Built for workshop duty with rust resistance and long functional life.
1300×2500 mm bed
Full 4×8 ft X-Y working area for standard slab nesting without repositioning.
400 mm Z · 4.5 kW
High Z clearance with 4.5 kW spindle to 18,000 RPM for thicker stone jobs.
Rack & pinion · ball screw
X-Y rack & pinion travel with ball-screw Z for controlled depth and G-code paths.
Ahmedabad support
Success-built with installation, training and spares from Odhav factory.
Applications of the STM-1325
2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — plus cutting and routing on artificial stone, granite and black graphite.
