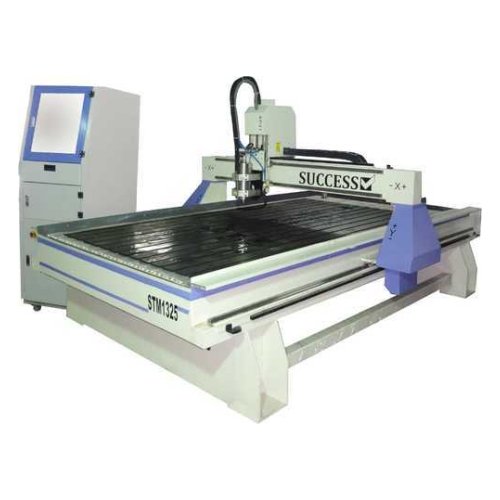

Single Spindle CNC Stone Engraving Machine
3-axis single-spindle CNC for marble, granite, sandstone and stone — 1300×2500 mm bed, 400 mm Z, 4.5 kW spindle to 18,000 RPM, rack & pinion X-Y, ball-screw Z, tools 3.175–12.7 mm.
Minimum order 1 piece. Final price depends on options. GST invoice · quotation within 24 hours. Need two spindles? See STM-1325-2Z 400 mm.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Single-spindle CNC with 400 mm Z clearance
Engraving is a cutting technique that carves a design into a hard surface to adorn or label objects. Traditionally done with manual tools, CNC engraving now uses computer-controlled milling paths created by CAD-CAM software from the design drawing.
Compared with manual engraving, CNC machines perform a wide range of advanced precision work for practical and artistic goals. The STM-1325 is a Success Technologies 3-axis single-spindle stone engraving machine — 1300 × 2500 mm bed, 400 mm Z travel and 4.5 kW spindle power for marble, granite, sandstone and stone.
Application: 2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam.
| Model | STM-1325 |
|---|---|
| Brand | Success |
| Machine type | 3 Axis |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 400 mm |
| Spindle power | 4.5 kW |
| Spindle head type | Single spindle |
| Spindle speed | 18,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Cutting tool diameter | 3.175, 4, 6, 12.7 mm |
| Command code | G-code |
| Driven motor | Stepper motor |
| Job material | Marble, stone, sandstone, granite |
| Minimum order quantity | 1 Piece |
| Origin | Made in India · Ahmedabad |
Single spindle focus
Dedicated single-head setup for precise stone engraving and 2D/3D carving paths.
400 mm Z travel
High Z clearance for thicker slabs, deep relief and tall fixturing on stone jobs.
1300×2500 mm bed
Full 4×8 ft X-Y working area for standard slab nesting without repositioning.
4.5 kW · 18,000 RPM
Spindle power and speed for marble, granite, sandstone and stone production work.
Tool sizes 3.175–12.7 mm
Supports common cutting tool diameters: 3.175, 4, 6 and 12.7 mm.
G-code · stepper drive
Rack & pinion X-Y, ball-screw Z and stepper motors for CAD-CAM workflows.
Applications of the STM-1325
2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — for monuments, tiles, reliefs and architectural stone work.
