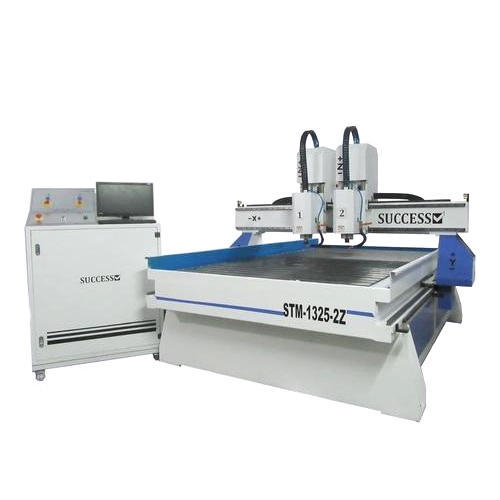

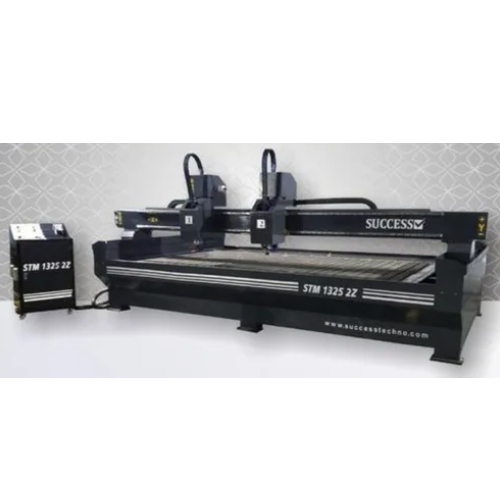

Double Head CNC Stone Engraving Machine
High-power double-head CNC for sandstone, granite, ceramic, stone and marble — 1300×2500 mm bed, 400 mm Z, 5.5 kW spindle to 24,000 RPM, 0.025 mm resolution, tools 3.175–12.7 mm.
Minimum order 1 piece. Final price depends on options. GST invoice · quotation within 24 hours. Also see 4.5 kW / 18k RPM variant.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Double-head CNC with 5.5 kW spindle power
Engraving is a cutting technique that carves a design into a hard surface to adorn or label objects. Traditionally done with manual tools, CNC engraving now uses computer-controlled milling paths created by CAD-CAM software from the design drawing.
Compared with manual engraving, CNC machines perform a wide range of advanced precision work for practical and artistic goals. The STM-1325-2Z pairs a double head spindle with 5.5 kW power and 24,000 RPM — for higher throughput on sandstone, granite, ceramic, stone and marble on a 1300 × 2500 mm bed with 400 mm Z travel.
Application: 2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam.
| Model | STM-1325-2Z |
|---|---|
| Brand | Success |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 400 mm |
| Spindle power | 5.5 kW |
| Spindle head type | Double head spindle |
| Spindle speed | 24,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Cutting tool diameter | 3.175, 4, 6, 12.7 mm |
| Resolution | 0.025 mm |
| Command code | G-code |
| Driven motor | Stepper motor |
| Job material | Sandstone, granite, ceramic, stone, marble |
| Minimum order quantity | 1 Piece |
| Origin | Made in India · Ahmedabad |
Double head spindle
Two spindles for higher throughput on large stone engraving and carving jobs.
5.5 kW · 24,000 RPM
Higher spindle power and speed for ceramic, granite and sandstone production work.
400 mm Z travel
High Z clearance for thicker slabs, deep relief and tall fixturing.
1300×2500 mm bed
Full 4×8 ft X-Y working area for standard slab nesting without repositioning.
0.025 mm · tools 3.175–12.7
Fine resolution with common tool diameters for detail and heavier cuts.
G-code · stepper drive
Rack & pinion X-Y, ball-screw Z and stepper motors for CAD-CAM workflows.
Applications of the STM-1325-2Z
2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — plus production engraving on granite, ceramic and sandstone.
