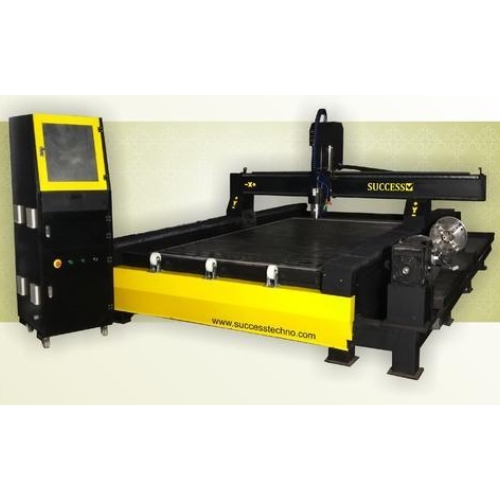

Rotary Axis CNC Stone Engraving Machine
Rotary CNC for cylindrical and flat stone work — 1300×2500 mm bed, 200 mm Z, 24,000 RPM single spindle, rack & pinion X-Y, ball-screw Z, 0.025 mm resolution, G-code / stepper drive.
Minimum order 1 piece. Custom sizes & capacity available. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Rotary CNC for stone engraving & cylinders
We manufacture and develop a range of Rotary CNC Stone Engraving Machines. We also welcome inquiries for CNC router machines in sizes and capacities beyond our standard models — and will manufacture and supply customized machines.
CNC engraving machines are computer-operated (software and electronics) rather than manually driven. In most setups they cut in three directions — X (front to back), Y (left to right) and Z (up and down). Depending on configuration, CNC can also cut wood, plastic, aluminium and high-density foam.
The 1325 Series combines a full 1300 × 2500 mm bed with rotary-axis capability for cylindrical stone work alongside flat engraving on sandstone, granite, marble and artificial stone.
| Model | 1325 Series |
|---|---|
| Brand | Success |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 200 mm |
| Spindle head type | Single spindle |
| Spindle speed | 24,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Resolution | 0.025 mm |
| Command code | G-code |
| Driven motor | Stepper motor |
| Job material | Sandstone, granite, artificial stone, marble, stone |
| Minimum order quantity | 1 Piece |
| Country of origin | Made in India |
Rotary axis capability
Built for rotary CNC stone engraving — cylindrical columns, pillars and round blanks.
1300×2500 mm bed
Full 4×8 ft X-Y working area for large flat slabs as well as rotary jobs.
24,000 RPM spindle
Single spindle speed suited to precise stone engraving and carving paths.
Rack & pinion · ball screw
Fast X-Y travel with ball-screw Z for controlled depth and repeatable reliefs.
0.025 mm resolution
Fine resolution with G-code and stepper drive for detailed stone work.
Custom builds welcome
Ask for different bed sizes or capacity — we manufacture customized machines.
Applications of the 1325 Series
Rotary and flat engraving on sandstone, granite, marble, artificial stone and stone — plus broader CNC cutting of wood, plastic, aluminium and high-density foam when configured for those materials.
