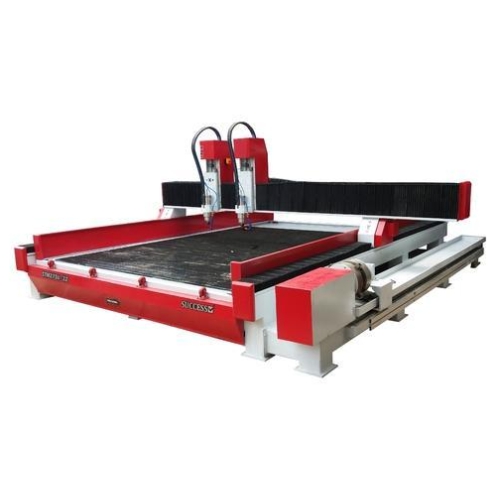

Double Head CNC Stone Cutting & Engraving Machine
Large-format double-head CNC for cutting and engraving granite, marble, stone and sandstone — 2700×3600 mm bed, 3 kW spindle to 24,000 RPM, servo drive with rack & pinion X-Y and ball-screw Z.
Minimum order 1 piece. Final price depends on options. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
CNC precision for stone cutting & engraving
Engraving is a cutting technique that carves a design into a hard surface to adorn or label objects. Traditionally done with manual tools, CNC engraving now uses computer-controlled milling paths created by CAD-CAM software from the design drawing.
Compared with manual engraving, CNC machines perform a wide range of advanced precision work for practical and artistic goals. The STM-2736-2Z is a double-head stone cutting and engraving machine from Success Technologies — built for large slabs and production stone shops.
Application: 2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam.
| Model | STM-2736-2Z |
|---|---|
| Brand | Success |
| X-Y axis working area | 2700 × 3600 mm |
| Spindle power | 3 kW |
| Spindle head type | Double head spindle |
| Spindle speed | 24,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Driven motor | Servo motor |
| Job material | Granite, stone, marble, sandstone |
| Minimum order quantity | 1 Piece |
| Condition · Origin | New · Made in India |
Double head spindle
Two spindles for higher throughput on large stone cutting and engraving jobs.
2700×3600 mm bed
Large X-Y working area suited to oversized slabs and multi-piece nesting.
24,000 RPM · 3 kW
Spindle power and speed for precise stone engraving and cutting paths.
Servo driven
Servo motors with rack & pinion X-Y and ball-screw Z for controlled motion.
CAD-CAM ready
CNC milling paths from design drawings — advanced precision vs manual engraving.
Ahmedabad support
Success-built with installation, training and spares from Odhav factory.
Applications of the STM-2736-2Z
2D and 3D carving of fiberglass, stone, marble, sandstone, interior glazed wall tile, plastic, resin, black granite and EPP foam — for monuments, tiles, reliefs and architectural stone work.
