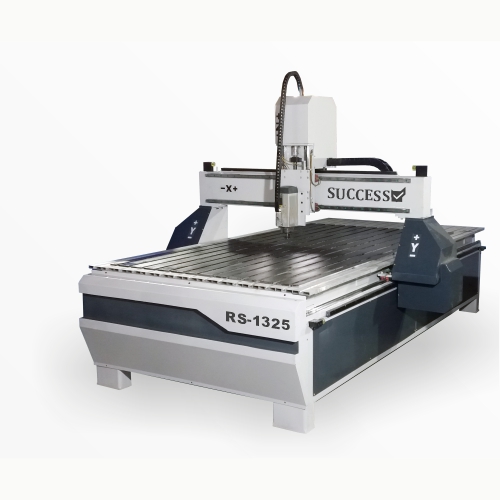

2D/3D CNC Wood Engraving & Router Machine
Production 4×8 ft CNC router with a 6 kW air-cooled spindle, all-steel body and PCI-based controller — for wooden doors, 2D/3D carving, MDF grills, signage and prototyping.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
A full-sheet router that pays for itself in throughput
The RS-1325 is our best-selling 3-axis CNC engraving and router machine, built around a 1300 × 2500 mm bed that takes a full 4×8 ft sheet of MDF, plywood or ACP without repositioning. A 6 kW air-cooled spindle running to 18,000 RPM handles everything from fine 3D relief carving to full-depth panel cutting.
X-Y motion runs on rack & pinion for speed across the long axes; the Z axis uses a ball screw for depth precision. The PCI-based controller accepts standard G-code and HPGL, so it works with ArtCAM/Carveco, Type3 and other common CAM software. The all-steel body is stress-relieved before machining to keep the gantry true for years.
Ideal for wooden doors, carved gift articles, MDF grills and jali work, foam patterns, waving boards, and indoor/outdoor signage — for hobbies and prototyping up to full production shifts.
| X-Y axis working area | 1300 × 2500 mm (4 × 8 ft) |
|---|---|
| Z axis working area | 200 mm |
| Spindle power | 6 kW, air-cooled |
| Spindle speed | 18,000 RPM |
| Machine type | 3 axis · single spindle head |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Drive motor | Stepper motor |
| Control system | PCI-based controller · G-code, HPGL |
| Job materials | Wood, plastic, ACP, sign board, PVC, acrylic, plywood, MDF, aluminium, brass |
| Brand · Origin | Success · Made in India |
All-steel body
Stress-relieved welded steel frame keeps the gantry rigid at full cutting feed.
6 kW production spindle
Air-cooled, 18,000 RPM — deep cuts in hardwood and clean edges in acrylic alike.
Open CAM compatibility
G-code & HPGL — works with Carveco (ArtCAM), Type3, Aspire and more.
Full-sheet 4×8 ft bed
Nest a whole MDF or ACP sheet — no repositioning, no seam errors.
Ball-screw Z axis
Repeatable engraving depth for consistent 2D/3D relief work.
Local support, always
Ahmedabad-built with spares in stock and engineers a phone call away.
Applications of the RS-1325
Wooden doors, carved gift articles, MDF & plywood work, PVC, foam guards, waving boards, 2D-3D carving and indoor/outdoor signage.
