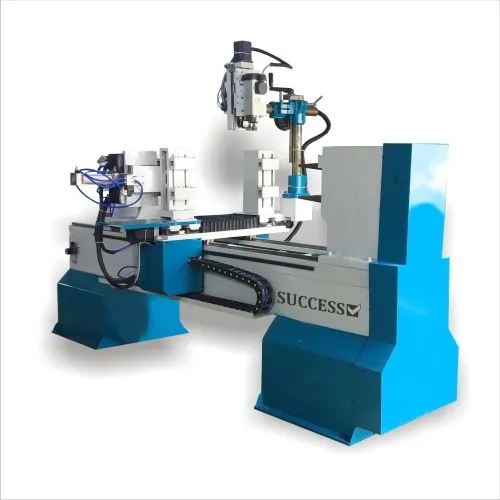

CNC Wood Lathe Machine with 4 Axis
Double axis double spindle CNC wood lathe with 4 axis spindle — turning, milling, grooving, twisting, cylinder engraving and flat engraving on columns, legs, vases and vehicle wood crafts up to 1500 mm long.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Double axis double spindle CNC wood lathe with 4 axis spindle
We are a leading manufacturer of CNC wood lathe machines with 4 axis and CNC wood lathes from Ahmedabad, India. The SWL1515D-4S is a double axis double spindle CNC wood lathe with 4 axis spindle, built on a heavy cast steel structure for stable turning of long cylindrical workpieces.
Function: Turning, milling, grooving, twisting, cylinder engraving and flat engraving.
Application: Applied for various cylindrical workpiece, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children’s bed column, etc.
The machine uses a double cylinder spindle plus one flat spindle, advanced DSP control with G-code support, stepper motor and drivers, and accepts 380 V / 220 V at 50/60 Hz. Maximum feed rate is 200 cm/min with a minimum setting unit of 0.01 cm. Air pressure requirement is 0.6–0.8 Mpa.
| Brand | Success |
|---|---|
| Model | SWL1515D-4S (SWL-L1515D-4S) |
| Maximum turning diameter | 160 mm |
| Maximum turning length | 1500 mm |
| Material | Wood |
| Automation grade | Fully automatic |
| Structure | Heavy cast steel |
| Number of axis | Double axis, four blades |
| CNC spindle | Double cylinder spindle + one flat spindle |
| Maximum feed rate | 200 cm/min |
| Minimum setting unit | 0.01 cm |
| Control system | Advanced DSP |
| Support command | G code |
| Air pressure | 0.6–0.8 Mpa |
| Driving mode | Stepper motor and drivers |
| Working voltage | 380 V / 220 V 50/60 Hz |
| Brand · Origin | Success · Made in India |
Double axis, four blades
Two-axis configuration with four blades for simultaneous turning and multi-surface work on long columns.
Dual spindle + flat spindle
Double cylinder spindle plus one flat spindle — cylinder turning and flat engraving in one setup.
Heavy cast steel frame
Rigid structure absorbs vibration for accurate turning on 1500 mm long workpieces.
Advanced DSP · G-code
DSP controller accepts standard G-code for turning, milling, grooving and engraving toolpaths.
1500 mm turning length
Turn staircase columns, table legs, bed posts and vehicle wood crafts up to 1.5 metres long.
Local support, always
Ahmedabad-built with spares in stock and engineers a phone call away.
Applications of the SWL1515D-4S
Cylindrical workpieces, bowl shape, tubular shape and vehicle wood crafts — staircase columns, Roman columns, table and chair legs, vases, baseball bats and more.
- Staircase column, Roman column and general column turning
- Tables or chairs legs, washstand and children’s bed column
- Wooden vase, wooden table and baseball bats
- Car wooden furniture and tubular wood crafts
- Bowl shape and cylindrical workpiece profiling
