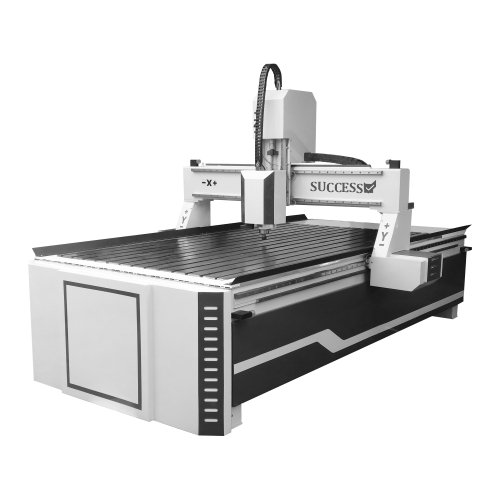

Wood Working CNC Router Machine with CCD Camera
Production 4×8 ft CNC router with integrated CCD camera, 3 kW single spindle and 18,000 RPM — for print-and-cut signage, advertising panels, wood, MDF, acrylic and soft metal contour cutting.
Final price depends on spindle, controller, CCD setup & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
CNC router with CCD vision for advertising & woodworking
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines can cut in three directions, known as the X, Y and Z axes. The longest axis is the X-axis, which runs from front to back. The Y-axis represents left and right, whereas the Z-axis represents up and down. CNC routers are faster and more exact than manual cutting since they run on computers, making them valuable in manufacturing.
Application fields: Applicable to process advertising plate, acrylic, plastic, sucking mould and wood products in high-efficiency handicraft cutting or 3D engraving, various sign boards, metal foil mould and construction models.
This machine is not only suitable for wood and MDF processing, but also very suitable for contour edge cutting of foam board and soft metal such as aluminium composite panel and acrylic. This type of machine plays an important role in the advertising industry. Best mechanical and electrical design with well-selected brand parts for minimum breakdown rate. High-precision ball screw transmission ensures high accuracy. The working table is covered with rigid PVC sheet for long life of the aluminium table. High accuracy and heavy workload are ensured by imported square rail.
| Model | STC-1325 |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 200 mm |
| Spindle power | 3 kW |
| Spindle head type | Single Spindle |
| Spindle speed | 18,000 RPM |
| Machine type | 3 Axis |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G-Code |
| Driven motor | Stepper Motor |
| Job materials | Foam Board, Wood, Brass, Aluminium, Aluminium Composite Panel (ACP), Backlit Hylam, Acrylic, Plywood, PVC, Plastic, Sign Board |
| Brand · Condition | Success · New · Made in India |
Integrated CCD camera
Vision registration for print-and-cut signage, labels and contour cutting on pre-printed sheets.
Full-sheet 4×8 ft bed
1300 × 2500 mm working area for standard plywood, MDF and ACP sheets.
3 kW single spindle
18,000 RPM cutting power for wood, acrylic, PVC and composite panels.
Ball screw & rack pinion
High-precision ball screw Z transmission with rack & pinion X-Y for accurate depth control.
Multi-material capability
Wood, MDF, foam board, acrylic, ACP, aluminium, brass, PVC, plastic and sign board on one machine.
Advertising industry ready
PVC-covered table, imported square rail and proven design for sign shops and display production.
Applications of the STC-1325
From advertising plates and 3D billboards to furniture doors, cabinets and wooden relief work — one router with CCD vision for signage and woodworking.
Advertising industry: Acrylic, colour plate, PVC, ABS board, aluminium and aluminium panels with carved V-shaped groove cut, colour portrait, three-dimensional billboards, all types of signs, badges, seat plates, copper, class logos and trademarks. The CCD camera enables precise print-and-cut on pre-printed vinyl, flex and rigid signage materials.
Wood working: Furniture, musical instruments, wooden handicrafts, art murals, MDF paint doors, composite doors, windows and cupboard doors, bedside cabinets, wall relief sculpture cutting, decorations, gift wrap, wave board, countertop appliances, sporting goods and other wooden surface and three-dimensional shape cutting.
