3D CNC Wood Router Machine with Servo Motor
Production 4×8 ft CNC router with servo motors, a 6 kW single spindle and 300 mm Z travel — built for 3D wood routing, wave panels, MDF profiling and high-throughput signage work.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Servo-driven 3D routing for production workshops
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines cut in three directions, known as the X, Y and Z axes. The X-axis runs front to back (the longest axis); the Y-axis represents left and right; the Z-axis represents up and down. Because they run on computers, CNC routers are faster and more exact than manual work — valuable in manufacturing and woodworking production.

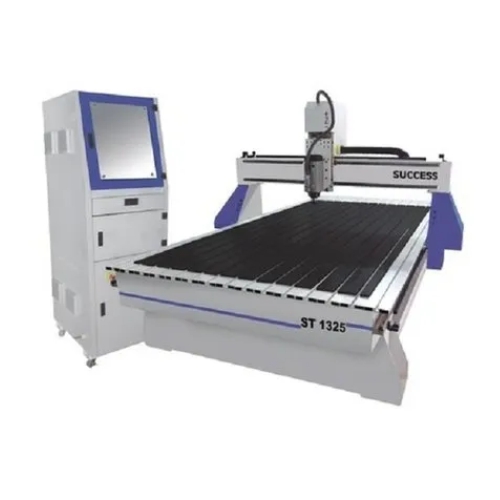

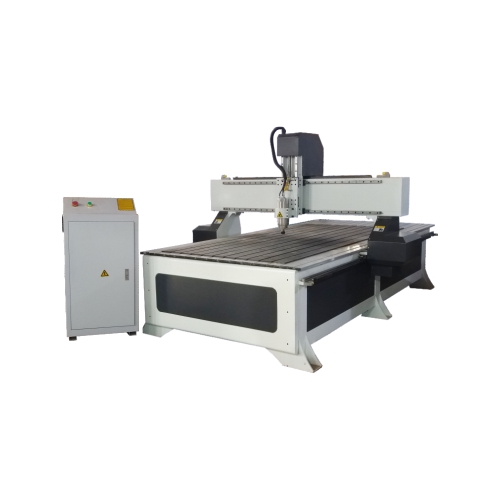

The ST-1325 is a Success brand 3-axis single-spindle CNC wood router with servo motor drive, a full 1300 × 2500 mm bed, 300 mm Z travel and a 6 kW spindle for demanding 3D relief and panel work.
Applicable materials: MDF, wood, wave panel, aluminium panel, inscribed wooden slip, PVC, board, Corian sheet, acrylic and more.
| Model | ST-1325 |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 300 mm |
| Spindle power | 6 kW |
| Spindle head type | Single Spindle |
| Spindle speed | 24,000 RPM |
| Machine type | 3 Axis |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G-Code |
| Driven motor | Servo Motor |
| Job materials | MDF, Acrylic, Foam Board, PVC, Sign Board, Aluminium Composite Panel (ACP), Wood, Brass, Plastic, Plywood |
| Brand · Condition | Success · New · Made in India |
Servo motor drive
Higher torque, smoother acceleration and better positional accuracy under load for continuous production shifts.
6 kW production spindle
24,000 RPM cutting power for hardwood, MDF, acrylic and composite panels at production feed rates.
300 mm Z-axis travel
Deep 3D relief carving, wave panels and thick stock without tool-length limitations.
Full-sheet 4×8 ft bed
1300 × 2500 mm working area — nest a whole MDF or plywood sheet with no repositioning.
Production throughput
Servo drive and rack & pinion X-Y motion keep cycle times low on panel cutting and 3D routing jobs.
G-code CAD-CAM ready
Runs standard milling paths from ArtCAM/Carveco, Aspire and other common CAM software.
Applications of the ST-1325
3D wood routing, wave panels, MDF profiling, furniture parts and indoor/outdoor signage — one servo-driven router for woodworking and sign production.
3D wood routing: Relief sculpture, carved gift articles, wooden handicrafts, art murals, door panels and three-dimensional decorative elements with consistent depth and finish.
Wave panels & MDF: Wave board, MDF paint doors, composite doors, jali grills, cabinet fronts and countertop profiles — the 300 mm Z travel handles deep profiling in one setup.
Signage: Acrylic signs, PVC and ACP panels, Corian lettering, colour plates, three-dimensional billboards, badges and indoor/outdoor display work.
