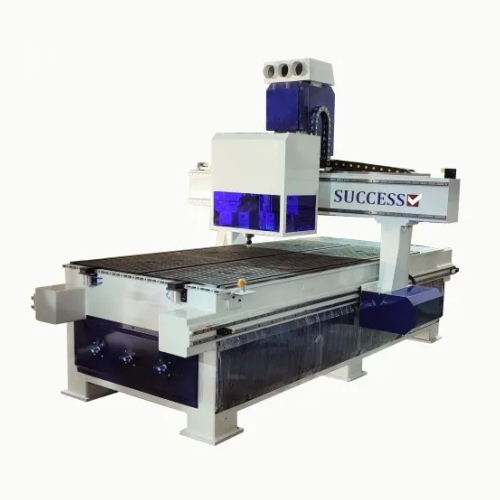

Double Spindle CNC Wood Router Machine with Drilling Head
Economical 4×8 ft panel furniture processing center with dual 6 kW spindles and a 9V row drill — cutting, drilling, slotting and engraving in one setup.
Final price depends on spindle, drill head, controller & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Dual spindle routing with integrated drilling for panel furniture
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines cut in three directions, known as the X, Y and Z axes. The X-axis runs front to back (the longest axis); the Y-axis represents left and right; the Z-axis represents up and down. Because they run on computers, CNC routers are faster and more exact than manual work — valuable in manufacturing and woodworking production.
The SD-1325 is a Success brand double-head CNC router with a 9V drilling head — an economical processing center specialized in cutting, drilling, slotting and engraving of panel furniture. This model greatly improves production and processing accuracy and efficiency while saving production costs.
The machine is equipped with a 9V row drill set (5+4 configuration) for fast vertical drilling, plus two 6 kW spindles for grooving and cutting plates.
Applicable materials: MDF, sign board, acrylic, PVC, wood and plywood.
| Model | SD-1325 |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1300 × 2500 mm |
| Spindle power | 6 kW |
| Spindle head type | Double Head Spindle |
| Spindle speed | 24,000 RPM |
| Drilling head | 9V row drill (5+4) |
| Machine type | 3 Axis |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G-Code, HPGL |
| Driven motor | Stepper Motor |
| Control system | PCI Based Controller |
| Job materials | MDF, Sign Board, Acrylic, PVC, Wood, Plywood |
| Brand · Condition | Success · New · Made in India |
9V row drill (5+4)
Imported 9V row drill set with fast vertical drilling for cabinet holes, shelf pins and panel furniture joinery.
Dual 6 kW spindles
Two 6 kW spindles at 24,000 RPM for simultaneous grooving and plate cutting — higher throughput on panel jobs.
Panel furniture center
Economical all-in-one processing for cutting, drilling, slotting and engraving — reduces handling and production costs.
Full-sheet 4×8 ft bed
1300 × 2500 mm working area — nest a whole MDF or plywood sheet with no repositioning.
Rack & pinion · ball-screw Z
Fast X-Y travel with rack & pinion; precise depth control with ball screw on the Z axis for accurate drilling and routing.
G-Code · HPGL · PCI control
PCI based controller runs standard milling paths from ArtCAM/Carveco, Aspire and other common CAM software.
Applications of the SD-1325
Panel furniture, cabinetry, advertising signage and woodworking production — cutting, drilling, slotting and engraving in one economical processing center.
Advertising industry: Acrylic, colour plate, PVC, ABS board, aluminium and aluminium panels with carved V-shaped groove cut, colour portrait, three-dimensional billboards, all types of signs, badges, seat plate, copper, class logos and trademarks.
Wood working: Furniture, musical instruments, manufacturing, wooden handicrafts, art murals, MDF paint doors, composite doors, windows and doors cupboard, bedside cabinets, wall relief sculpture cutting, decorations processing, gift wrap, wave board, countertop appliances, sporting goods, industrial products, and other wooden surfaces and three-dimensional shape cutting.
