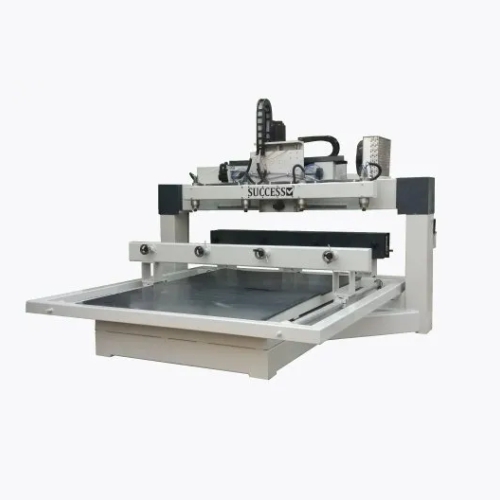

CNC Wood Router Machine with Servo Motor
Production 4×8 ft multi-spindle CNC router with YASKAWA servo motors, four simultaneous heads and a 4.5 kW water-cooled spindle — built for high-throughput panel cutting, MDF profiling and multi-head woodworking production.
Final price depends on spindle count, rotary, controller & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Multi-head servo routing for production woodworking
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines cut in three directions, known as the X, Y and Z axes. The X-axis runs front to back (the longest axis); the Y-axis represents left and right; the Z-axis represents up and down. Because they run on computers, CNC routers are faster and more exact than manual work — valuable in manufacturing and woodworking production.

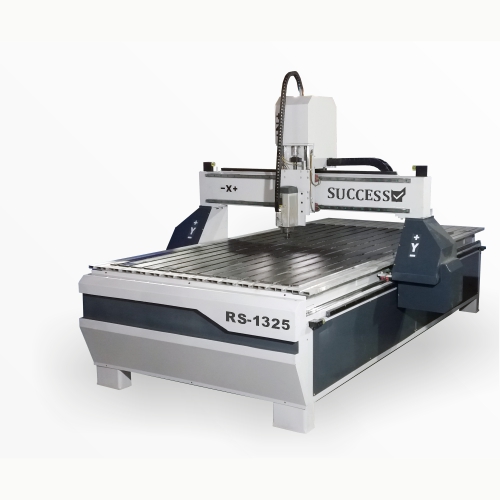

The 1325 Series is a Success brand 4-axis multi-spindle CNC wood router with Japanese YASKAWA servo motor drive, a full 1300 × 2500 mm bed, 300 mm Z travel and a 4.5 kW constant-power water-cooled spindle for demanding multi-head production work.
Key features: four heads that can work at the same time; constant-power water-cooling spindle for higher working strength; YASKAWA servo motors for higher working precision; rotary diameter and length manufactured according to client requirements.
Applicable materials: MDF, wood, sign board, HDF, PVC, acrylic, foam board and plywood.
| Model | 1325 Series |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 300 mm |
| Spindle power | 4.5 kW |
| Spindle head type | Multi-Spindle |
| Spindle speed | 18,000 RPM |
| Machine type | 4 Axis |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G-Code |
| Driven motor | Servo Motor |
| Control system | Digital Signal Processor (DSP) |
| Job materials | MDF, Wood, Sign Board, HDF, PVC, Acrylic, Foam Board, Plywood |
| Brand · Condition | Success · New · Made in India |
Four heads, simultaneous work
Four spindle heads can work at the same time — multiply output on panel cutting, nesting and repetitive woodworking jobs.
Constant-power water-cooled spindle
4.5 kW water-cooling spindle maintains cutting power at 18,000 RPM across long production shifts.
YASKAWA servo motors
Japanese YASKAWA servo drive delivers higher working precision, smoother motion and better accuracy under multi-head load.
Custom rotary options
Rotary diameter and length manufactured according to client requirements for cylindrical and 4-axis work.
Full-sheet 4×8 ft bed
1300 × 2500 mm working area — nest a whole MDF or plywood sheet with no repositioning.
DSP control · G-code ready
Digital Signal Processor (DSP) controller runs standard G-code milling paths from common CAD-CAM software.
Applications of the 1325 Series
Multi-head production woodworking — panel furniture, cabinet components, sign boards, MDF/HDF profiling and plywood nesting at scale.
Panel furniture production: Batch cutting of cabinet sides, shelves, drawer fronts and wardrobe panels — four heads complete the same nested layout in a fraction of the time of a single-spindle router.
MDF & HDF profiling: Door skins, jali grills, wave boards, composite door panels and decorative profiles with consistent depth across high-volume runs.
Signage & display: Acrylic signs, PVC and foam board lettering, HDF sign boards and indoor/outdoor display panels cut in multi-piece production batches.
