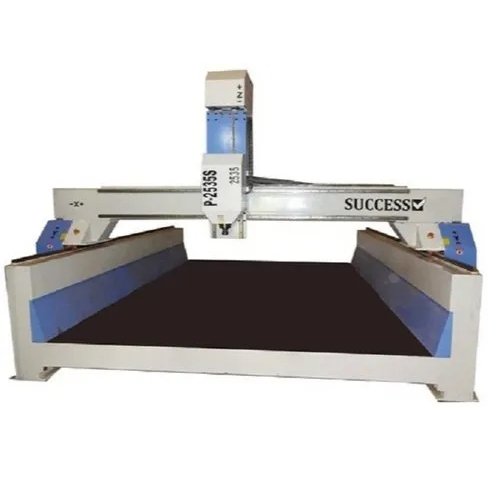

CNC Wooden Pattern Making Machine
Large-format automatic CNC pattern making machine with a 2500×3500 mm bed, 4.5 kW spindle and servo drive — for wooden patterns, furniture components, moulds and industrial woodwork.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Computer-controlled pattern making for furniture, moulds & industrial woodwork
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines can cut in three directions, known as the X, Y and Z axes. The X-axis runs from front to back (the longest axis), the Y-axis represents left and right, and the Z-axis represents up and down. Because they run on computers, CNC routers are faster and more exact than manual work — making them valuable in manufacturing.
The P-2535S is an automatic CNC wooden pattern making machine from Success Technologies, built in Ahmedabad with a 2500 × 3500 mm X-Y working area, a 4.5 kW single spindle at 24,000 RPM and servo motors. X-Y motion uses rack & pinion; the Z axis uses a ball screw. The controller accepts G-code. The best quality automatic CNC machine is offered to our prestigious customers at market-leading prices.
| Model | P-2535S |
|---|---|
| X-Y axis working area | 2500 × 3500 mm |
| Spindle power | 4.5 kW |
| Spindle head type | Single spindle |
| Spindle speed | 24,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Command code | G-Code |
| Driven motor | Servo motor |
| Job materials | Wood, MDF, plywood, PVC |
| Brand · Origin | Success · Made in India |
2500 × 3500 mm bed
Large-format X-Y working area for full-size wooden patterns, panels and industrial mould work.
4.5 kW spindle
24,000 RPM single spindle for precise pattern cutting and shape profiling in wood and allied materials.
G-code control
Standard G-code command format works with common CAM software for 2D and 3D toolpaths.
Servo drive system
Servo motors deliver smooth, accurate motion for repeatable pattern making at production speeds.
Rack & pinion X-Y · Ball-screw Z
Fast travel on long axes with precise depth control for pattern and mould work.
Local support, always
Ahmedabad-built with spares in stock and engineers a phone call away.
Applications of the P-2535S
Furniture & decorations, wood products, musical instruments, advertising signage and artwork — from wave plates and antique furniture to photo frames and jewellery boxes.
- Furniture & Decoration Industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and more.
- Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
- Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
- Advertising Industry: Advertising identification, sign making, acrylic cutting, crystal word making, blaster moulding, cabinet doors carving and other advertising materials derivatives.
- Artwork: Photo frame, jewellery box and similar decorative pieces.
