CNC Router Wooden Pattern Making Machine
Leading manufacturer and wholesaler of CNC router wooden pattern making machines — 1500×3000 mm bed, single spindle at 18,000 RPM and 0.025 mm resolution for wood, MDF, plywood, PVC and acrylic pattern work.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Precision CNC routing for wooden pattern making
We are the leading Manufacturer and wholesaler of Engraving Machine to our valuable clients.
CNC routers can cut a variety of materials, including wood, plastic, aluminium and high-density foam. CNC stands for computer numerical control — machines operated by computer software and electronics rather than by a human operator.
CNC machines can cut in three directions, known as the X, Y and Z axes. The X-axis runs from front to back (the longest axis), the Y-axis represents left and right, and the Z-axis represents up and down. Because they run on computers, CNC routers are faster and more exact than manual carving — making them valuable in manufacturing.

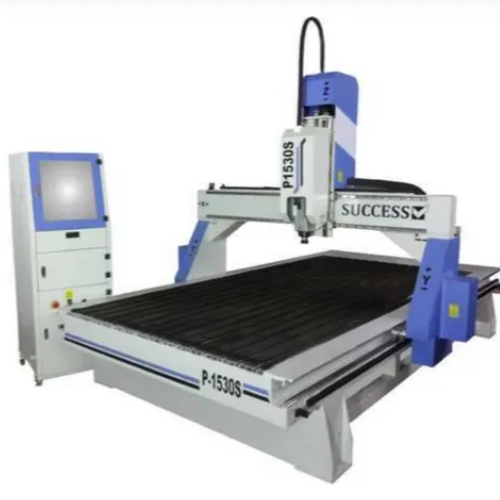

The P-1530S is a CNC router wooden pattern making machine from Success Technologies, built in Ahmedabad with a 1500 × 3000 mm X-Y working area, single spindle at 18,000 RPM and 0.025 mm resolution. X-Y motion uses rack & pinion; the Z axis uses a ball screw. Driven by stepper motors with cutting tool diameters of 3.175, 4, 6 and 12.7 mm.
| Minimum order quantity | 1 Piece |
|---|---|
| Model | P-1530S |
| Brand | Success |
| X-Y axis working area | 1500 × 3000 mm |
| Job materials | Wood, MDF, Plywood, PVC, Acrylic |
| Spindle head type | Single spindle |
| Spindle speed | 18,000 RPM |
| X-Y movement | Rack & pinion |
| Z movement | Ball screw |
| Cutting tool diameter | 3.175, 4, 6, 12.7 mm |
| Resolution | 0.025 mm |
| Driven motor | Stepper motor |
| Motion speed | 25 mm/min |
| Country of origin | Made in India |
1500×3000 mm bed
Large-format X-Y area for wooden patterns, panels and full-sheet nesting without repositioning.
18,000 RPM spindle
Single spindle head for clean pattern edges in wood, MDF, plywood, PVC and acrylic.
0.025 mm resolution
Fine positional accuracy for detailed pattern work and repeatable production runs.
Multi-size tool support
Accepts cutting tools of 3.175, 4, 6 and 12.7 mm diameter for varied pattern profiles.
Rack & pinion X-Y · Ball-screw Z
Fast travel on long axes with precise depth control for pattern carving work.
Local support, always
Ahmedabad-built with spares in stock and engineers a phone call away.
Applications of the P-1530S
Furniture & decorations, wood products, musical instruments, advertising signage and artwork — from wave plates and antique furniture to photo frames and jewellery boxes.
- Furniture & Decoration Industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
- Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
- Advertising Industry: Advertising identification, sign making, acrylic cutting, crystal word making, blaster moulding, and other advertising materials derivatives making cabinet doors carving.
- Artwork: Photo frame, jewellery box etc.
