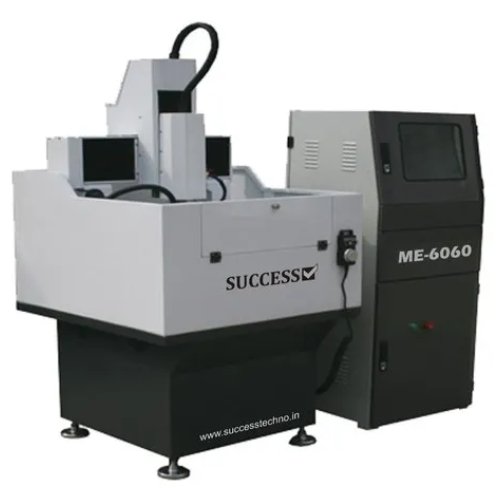

3 Axis CNC Mould & Die Making Machine
ME-6060 3-axis CNC mould & die making machine — whole cast-iron structure with 0.01 mm precision, 600×600 mm X-Y area, 18,000 RPM water-cooled spindle, imported control with break-point memory, and G-code stepper drive for dies, moulds and light milling.
Minimum order 1 piece · new condition. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Precision 3-axis mould & die CNC
Standard Features: Whole cast-iron structure, steady structure, high rigidity, precision 0.01 mm.
Three axis all ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
Imported control system — this system has break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. The function can guarantee the processing precision of long time operation. Adopt table movement to keep stable.
Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency, long-lifetime, can be a long time continuous working.
| Minimum order quantity | 1 Piece |
|---|---|
| X-Y axis working area | 600 × 600 mm |
| Model | ME-6060 |
| Machine type | 3 Axis |
| Job material | Brass, Aluminium, Mild Steel, Aluminium Composite Panel (ACP), Copper |
| Spindle head type | Single Spindle |
| Spindle speed | 18,000 RPM |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G Code |
| Driven motor | Stepper Motor |
| Country of origin | Made in India |
Cast-iron structure
Whole cast-iron frame — steady structure, high rigidity, 0.01 mm precision for mould and die work.
Ball screw & linear orbits
Three axis all ball screw and Taiwan linear orbits with Japan bevel math bearing for accuracy and reposition precision.
Imported control system
Break point memory and special saving mode for continuous working after electronic drop or other delay.
Table movement design
Adopt table movement to keep stable — maintains processing precision on long-time operation.
18,000 RPM spindle
High-speed water cooling variable frequency motor — big torque, strong cutting, high-frequency, long-lifetime continuous working.
Ahmedabad support
Success-built with installation, training and spares from Odhav factory.
Applications of the ME-6060

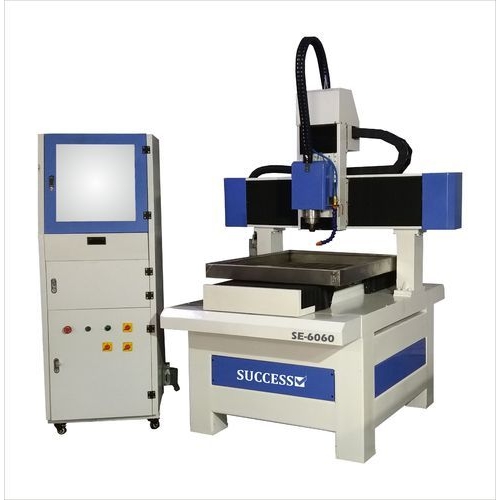

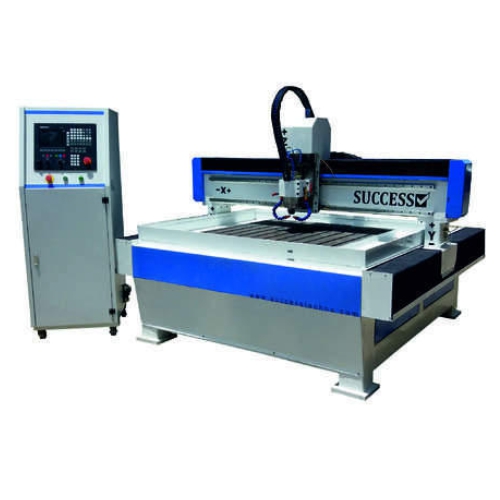

Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting and embossing dies & tools, vacuum forming dies, solid models, control panel plates, name plates, sign making, gift articles, mementos, engraving for rubber stereos, and light milling work.
