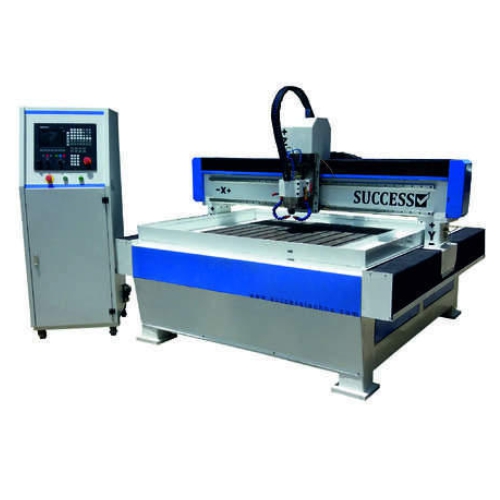

Single Spindle CNC Mould & Die Making Machine
1010 Series single spindle CNC mould and die making machine — 1000×1000 mm X-Y area, 18000 RPM spindle, rack & pinion X-Y with ball screw Z, G Code control and stepper drive. Brass, aluminium and copper jobs.
Minimum order 1 piece · new condition. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Precision CNC mould & die engraving
We are offering CNC Mould & Die Making Machine to our valuable customers.
Engraving is a cutting technique or method that involves carving a design into a hard surface to adorn or label objects made of various materials. It was traditionally done with a set of manual engraving tools, but CNC engraving is now accessible. CNC engraving is done with computer-controlled devices that use milling paths created by CAD-CAM software based on the design drawing. CNC engraving machines, in comparison to manual engraving machines, are capable of performing a wide range of advanced precision engraving, whether for practical or artistic objectives.
The 1010 Series combines a single spindle head at 18000 RPM with a 1000×1000 mm working envelope, rack & pinion X-Y drive, ball screw Z axis and G Code control — built for dies, moulds, punches and precision tooling in brass, aluminium and copper.
| Minimum order quantity | 1 Piece |
|---|---|
| X-Y axis working area | 1000 x 1000 mm |
| Model | 1010 Series |
| Job material | Brass, Aluminium, Copper |
| Spindle head type | Single Spindle |
| Spindle speed | 18000 RPM |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G Code |
| Driven motor | Stepper Motor |
| Condition | New |
| Country of origin | Made in India |
18000 RPM single spindle
High-speed single spindle head for fine detail engraving and light milling on brass, aluminium and copper.
1000×1000 mm bed
Square metre working area for dies, moulds, punches and electrode blanks.
Rack & pinion + ball screw
Rack & pinion X-Y movement with ball screw Z axis for stable, repeatable motion.
CAD-CAM G Code
Computer-controlled milling paths from CAD-CAM software for advanced precision engraving.
Stepper motor drive
Reliable stepper motor driven axes for consistent engraving and light milling cycles.
Ahmedabad support
Success-built with installation, training and spares from Odhav factory.
Applications of the 1010 Series
Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting and embossing dies & tools, vacuum forming dies, solid models, control panel plates, name plates, sign making, gift articles, mementos, engraving for rubber stereos, light milling work and related precision tooling.
