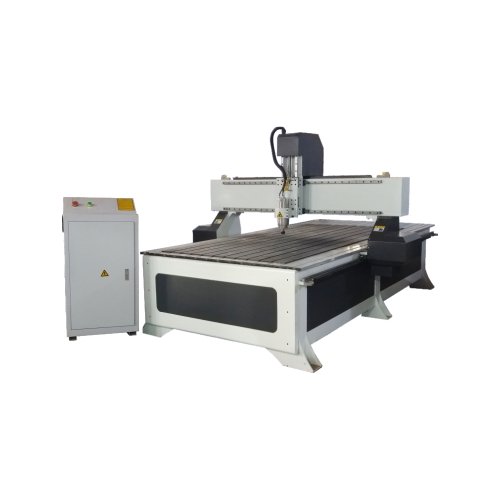

2D/3D CNC Engraving & Router Machine
Reliable 4×8 ft 3-axis CNC router with a 3 kW water-cooled spindle, 25 mm linear guideways and PCI controller — built for precise 2D/3D cutting, carving and engraving.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Precise 2D/3D engraving & routing in one machine
A CNC (Computer Numerical Control) engraving and router machine uses computer-controlled movements to precisely cut, carve, or engrave materials. These machines can operate in two or three dimensions — hence the terms 2D CNC and 3D CNC.
The advantage of CNC engraving and router machines is their ability to execute precise and repetitive tasks with high accuracy, improving efficiency and consistency across industries. Computer control automates complex designs and produces intricate shapes that would be challenging or impossible to achieve manually.
Performance and features of the SM-1325:
- 25 mm linear guideways for high positional accuracy and long life
- 3 kW water-cooled spindle for stable, trouble-free, maintenance-friendly performance over long periods
- High accuracy and heavy workload ensured by imported square rail
- Manual lubrication maintenance provided by the lubrication system
- Axis drive system: X, Y — Rack; Z — Ball Screw
| Model | SM-1325 |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1300 × 2500 mm |
| Z axis working area | 200 mm |
| Spindle power | 3 kW |
| Spindle cooling | Water cooling |
| Spindle speed | 24,000 RPM |
| Machine type | 3 Axis |
| Maximum cutting speed | 15,000 mm/min |
| Cutting tool diameter | 3–16 mm |
| Repeated location | 0.050 mm |
| Command code | G Code, HPGL |
| Driven motor | Stepper Motor |
| Control system | PCI Based Controller |
| Condition · Origin | New |
25 mm linear guideways
High positional accuracy and long service life for production workshops.
3 kW water-cooled spindle
Stable, trouble-free performance for long cutting and engraving shifts.
Imported square rail
Supports high accuracy under heavy workloads for consistent output.
Rack X/Y · Ball-screw Z
Fast travel on the long axes with precise depth control for 2D/3D work.
PCI controller · G-code & HPGL
Works with common CAM software for 2D nesting and 3D relief toolpaths.
Manual lubrication system
Simple maintenance routine to keep guideways smooth and accurate.
Applications of the SM-1325
2D/3D engraving and routing for woodworking, signage, acrylic and plastic fabrication, prototypes and production jobs that need accurate, repeatable output.
