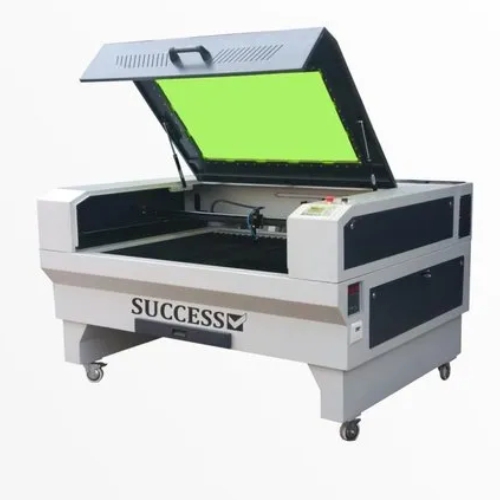

Laser Engraver Machine
STL43 CO2 laser engraving machine for marking and engraving materials — 4×3 ft bed, 100W laser, 0.1–400 mm/s travel, ±0.025 mm accuracy, water cooling and automatic operation. Auto CAD & CorelDraw compatible.
Minimum order 1 number · new condition. Final price depends on options. GST invoice · quotation within 24 hours.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
CO2 laser marking & engraving for production shops
Laser engraving is a non-contact process that uses a focused laser beam to mark or engrave designs into materials. The STL43 is a Success Technologies CO2 laser engraving machine built for industrial marking, personalization, signage and artistic work.
With automatic operation, water cooling and compatibility with Auto CAD and CorelDraw, the STL43 fits workshops that need reliable engraving on a 4 ft × 3 ft bed. Power adjustment from 0.1 to 100% and stepper motor drive give fine control over depth and speed.
Accepts PLT, AI, DXF and BMP file formats. Linear guide way travel, ±0.025 mm reposition accuracy and travelling speed from 0.1 to 400 mm/s support precise, repeatable output on a single-phase 220V/50Hz supply (earthing required).
| Model | STL43 |
|---|---|
| Brand | Success |
| Laser type | CO2 |
| Laser power | 100W |
| X-Y cutting area | 4 ft × 3 ft |
| Travelling speed | 0.1 to 400 mm/s |
| Reposition accuracy | ±0.025 mm |
| Guide way | Linear guide way |
| Power adjustment | 0.1 to 100% |
| Driven motor | Stepper motor |
| Compatible software | Auto CAD, CorelDraw |
| File formats | PLT, AI, DXF, BMP |
| Cooling | Water cooling |
| Operation | Automatic |
| Working voltage | Single phase 220V/50Hz (earthing required) |
| Power consumption | 2 kW |
| Minimum order quantity | 1 Number |
| Country of origin | Made in India |
100W CO2 laser
100W CO2 source with 0.1–100% power adjustment for marking and engraving across materials.
4×3 ft bed
4 ft × 3 ft X-Y cutting area for signage panels, gifts and batch personalization.
±0.025 mm accuracy
Linear guide way and stepper drive with ±0.025 mm reposition accuracy for fine detail.
Auto CAD & CorelDraw
Works with Auto CAD and CorelDraw — PLT, AI, DXF and BMP import for common design workflows.
Water cooling
Water-cooled laser tube for stable output during extended automatic production runs.
Ahmedabad support
Success-built with installation, training and spares from Odhav factory.
Applications of the STL43
Industrial marking and engraving, personalization, signage and artistic work — from nameplates and trophies to decorative panels and branded products.
