CNC Router Bits
Premium carbide CNC router bits for wood, acrylic, MDF, PVC, ACP and aluminium — available in end mill, V-bit, ball nose, straight flute, compression, corn teeth and engraving bit variants with multiple shank sizes.
Price varies by bit type, shank size and quantity. GST invoice · quotation within 24 hours.
The right bit for every CNC routing job
Success Technologies supplies a comprehensive range of solid tungsten carbide CNC router bits engineered for precision cutting and engraving on wood, MDF, plywood, acrylic, PVC, ACP, aluminium composite and soft metals. Each bit is precision-ground for clean edges, long tool life and consistent performance at high RPM.

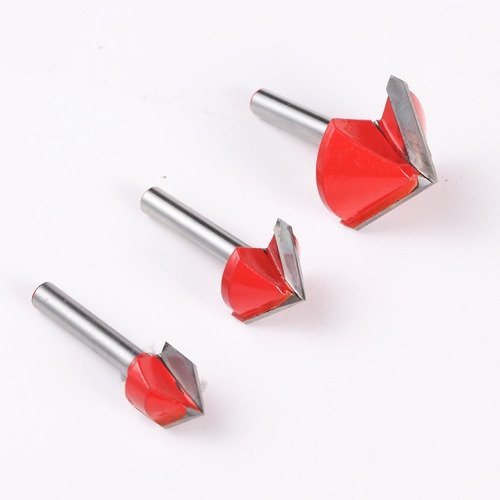

Our range includes flat end mills for pocketing and profiling, V-bits (60°, 90°, 120°) for lettering and V-carving, ball nose bits for 3D relief work, straight flute bits for clean-edge plywood cutting, compression bits for laminate-faced boards, corn teeth bits for rough clearing, and fine-point engraving bits for detailed marking.
Available in shank diameters of 3.175 mm (1/8″), 6 mm (1/4″), 8 mm, 10 mm and 12.7 mm (1/2″) to fit all standard CNC router collets. Single-flute, 2-flute and multi-flute options are stocked for different chip-load requirements.
| Material | Solid tungsten carbide (TC) |
|---|---|
| Bit types | End mill, V-bit, ball nose, straight flute, compression, corn teeth, engraving bit |
| Shank diameters | 3.175 mm, 6 mm, 8 mm, 10 mm, 12.7 mm |
| V-bit angles | 60°, 90°, 120° |
| Flute options | Single flute, 2-flute, multi-flute |
| Cutting length | 10 mm – 50 mm (varies by type) |
| Overall length | 38 mm – 75 mm (varies by type) |
| Compatible materials | Wood, MDF, plywood, acrylic, PVC, ACP, foam, aluminium, brass |
| Compatible machines | All CNC routers & engraving machines |
| Brand | Success Technologies |
Solid carbide construction
Tungsten carbide for superior hardness, heat resistance and extended tool life compared to HSS bits.
Precision ground
CNC-ground cutting edges deliver clean, burr-free cuts at high spindle speeds.
Universal compatibility
Fits all standard CNC router collets — Success, Chinese-made and European machines alike.
Complete range
End mills, V-bits, ball nose, compression and specialty bits — one supplier for all your tooling needs.
Bulk pricing
Volume discounts for workshops running multiple machines or high-volume production.
Expert guidance
Not sure which bit to use? Our team recommends the right tool for your material and application.
Applications of CNC Router Bits
Wood carving, MDF cutting, acrylic profiling, ACP signage, 3D relief work, V-carving, lettering, engraving, pocketing, slotting and edge finishing.
