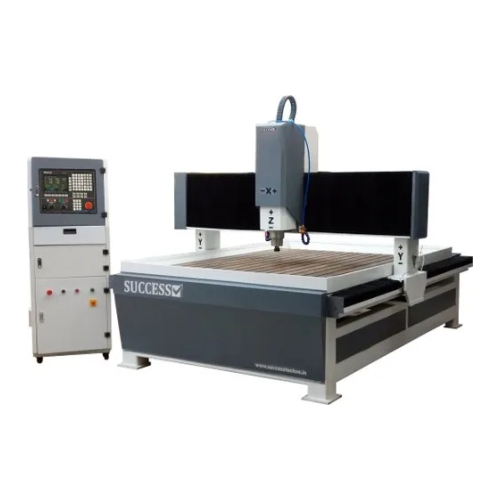

CNC Metal Engraving Machine (DM-1010)
3-axis CNC metal engraving machine with a 1000 × 1000 mm bed, 150 mm Z travel and 24,000 RPM single spindle — for 2D & 3D engraving on cast iron, mild steel, carbon steel, aluminium, copper and brass.
Final price depends on spindle, controller & accessories. GST invoice · quotation within 24 hours. MOQ: 1 Piece.
Shipping, returns & refunds per our Shipping Policy and Return & Refund Policy. 7-day return window for transit-damage claims; buyer bears return freight unless defect confirmed.
Precision CNC metal engraving for industrial & artistic work
Engraving is a cutting technique or method that involves carving a design into a hard surface to adorn or label objects made of various materials. It was traditionally done with a set of manual engraving tools, but CNC engraving is now accessible.
CNC engraving is done with computer-controlled devices that use milling paths created by CAD-CAM software based on the design drawing. CNC engraving machines, in comparison to manual engraving machines, are capable of performing a wide range of advanced precision engraving, whether for practical or artistic objectives.

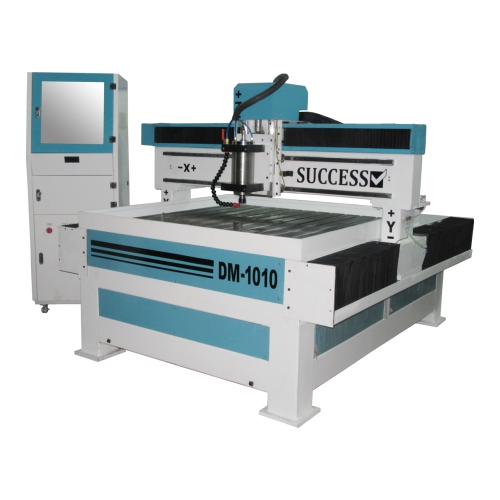

The DM-1010 is a Success brand 3-axis CNC metal engraving machine with a 1000 × 1000 mm working area, 150 mm Z travel and 24,000 RPM single spindle — built for workshops that need reliable 2D and 3D metal engraving on cast iron, mild steel, carbon steel, aluminium, copper and brass.
| Model | DM-1010 |
|---|---|
| Minimum order quantity | 1 Piece |
| X-Y axis working area | 1000 × 1000 mm |
| Z axis working area | 150 mm |
| Machine type | 3 Axis |
| Job material | Aluminium Composite Panel (ACP), Copper, Brass, Aluminium, Mild Steel |
| Spindle head type | Single Spindle |
| Spindle speed | 24,000 RPM |
| X-Y movement | Rack & Pinion |
| Z movement | Ball Screw |
| Command code | G Code |
| Driven motor | Stepper Motor |
| Brand · Condition | Success · New · Made in India |
1000 × 1000 mm working area
Large-format bed for metal plates, nameplates, control panels and industrial components requiring wide-area engraving.
24,000 RPM single spindle
High-speed spindle for fast, precise engraving and light milling on cast iron, steel, aluminium, copper and brass.
3-axis G Code control
Computer-controlled milling paths from CAD-CAM software for both 2D flat engraving and 3D relief work on metal.
Rack & pinion + ball screw
Rack and pinion X-Y drive with ball screw Z axis for stable, accurate motion across the full 1000 mm travel.
Multi-metal capability
Engrave cast iron, mild steel, carbon steel, aluminium, copper, brass and ACP — practical and artistic objectives on one machine.
Stepper motor drive
Reliable stepper-driven axes with G Code command — easy integration with standard CAM workflows. Made in India.
Applications of the DM-1010
Capable of 2D & 3D engraving on most metal materials — from industrial nameplates and signage to decorative metalwork and precision components.
Application: Capable of 2D & 3D engraving on most materials — i.e. Cast Iron, Mild Steel, Carbon Steel, Aluminium, Copper, Brass.
Industrial: Control panel plates, name plates, serial number marking, metal tags, badges, embossing dies and precision industrial components.
Decorative: Artistic metal engraving, gift articles, mementos, signage panels, decorative relief work and custom metal labels.
